Flowfield Studio

Preliminary axisymmetric flowfield analysis of the solved nozzle and plume.

Flowfield Studio solves and visualizes preliminary axisymmetric, nonreacting nozzle and plume cases for the engine you just sized: steady-state and transient, with residual status, field inspection, and export. It is built into RPL Engine Workbench and runs on the same case that produced the geometry and report.

Download View pricing

Transient nozzle startup playback — an idealized sudden-start transient (not an ignition model).

What it solves and shows

Model: Axisymmetric, nonreacting compressible flow of the solved engine's nozzle and external plume. Inviscid and viscous solver paths where supported by the installed build. Preliminary analysis; not reacting combustion CFD and not conjugate heat transfer.
Cases: Steady-state solves and transient solves with frame-by-frame playback of the startup-style evolution.
Fields: Pressure, Mach number, density, temperature, and density-gradient (schlieren-style) rendering that makes shocks, expansions, shear structures, and plume boundaries easier to inspect.
Diagnostics: Residual and convergence status, solver provenance, warnings, and separation/over-expansion screening context around the throat, expansion section, and exit plane.
Export: PNG images, image sequences, MP4 playback (local ffmpeg), and VTK fields for ParaView.
Compute: Runs locally; Apple GPU/Metal acceleration where the build and solver path support it.

Rendered fields

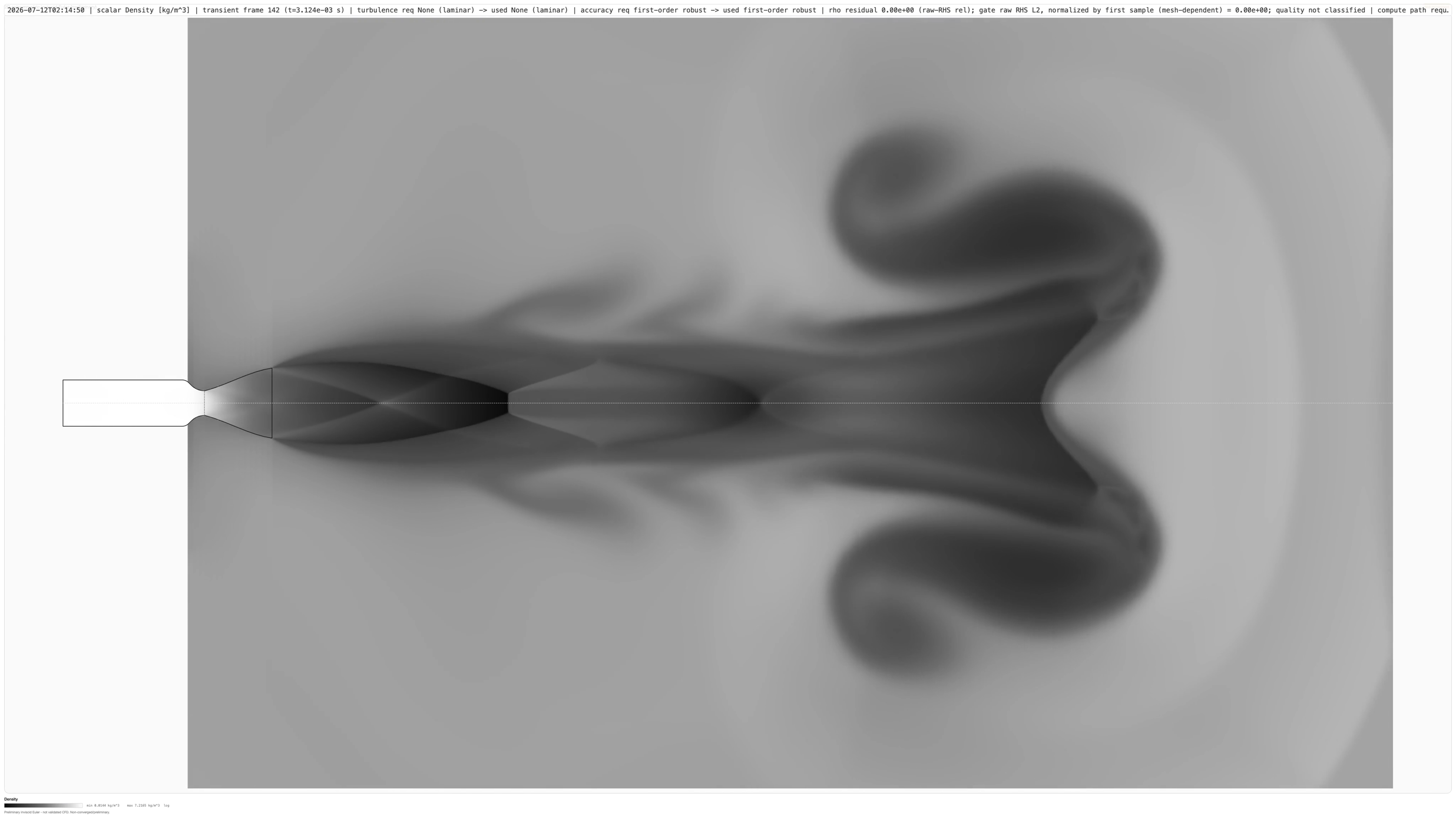

Monochrome log-density rendering of a sea-level LOX/RP-1 nozzle and plume: shock-diamond train aft of the exit and a startup vortex ring, with the application's solver header, density colorbar, and preliminary-status footer — Density field (log scale, ShockXRay colormap) of a sea-level LOX/RP-1 case: Pc 9.7 MPa, ε 8.0, transient startup frame at t = 3.1 ms, 1.65M cells on the Metal GPU path. Preliminary inviscid, nonreacting result, rendered by the application.

Flowfield Studio transient playback controls and residual status — Transient playback controls and diagnostic panels.

Nozzle and plume Mach-number visualization — Mach-number field of a solved nozzle and plume case.

Where it fits

Flowfield Studio answers a preliminary question early: does this contour, at this operating point, produce shocks, separation, or plume behavior that deserves attention before deeper analysis or a test? Results carry their convergence state and solver provenance, and any non-converged result is labeled as such.

It is not a substitute for validated CFD or hot-fire data. Final decisions belong with qualified analysis, test results, and your organization's review and acceptance processes.
